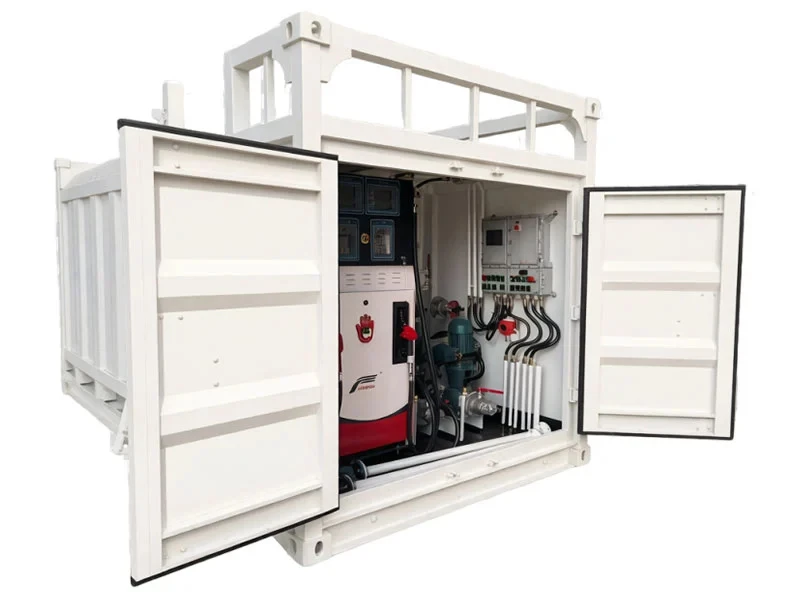

Portable Fuel Station
The Portable Fuel Station is a multi-purpose refueling device integrating explosion-proof materials, safety alarms, oil storage tanks, pump station management systems, pipeline safety auxiliary systems, etc., into one integrated refueling unit.
Purpose
The Portable Fuel Station is suitable for multi-product solution refueling, automotive production lines (engine oil, lubricating oil, transmission fluid, coolant, windshield washer fluid, etc.), and batching production lines. It can automatically meter and dispense the corresponding metered solution based on the equipment's solution requirements.
Parameters
| Equipment Name | Portable Fuel Station |
| Pressure | Design pressure: atmospheric pressure |
| Design Temperature | -40℃~ 60℃ |
| Connection Method | Quick coupling |
| Equipment Dimensions | Standard container or customized |
| Weight | Approx. 9T |
| Material | Q235B |
| Tank Body | Inner tank: 6mmOuter tank: 6mm |
| Capacity | Multiple materials |
| Emergency Pressure Relief Device | Breather valve pressure relief |
| Structure | Container type |
| Appearance | Storage tank shall be sandblasted for rust removal, grade Sa2.5, epoxy zinc-rich primer anti-corrosion coating |
| Operating Voltage | 380V/220V |
| Operating Power | Maximum power not exceeding 5KW when all machines operate simultaneously |
| Fueling Method | Self-sealing nozzle fueling via dispenser |
Reliability
The Portable Fuel Station is equipped with an intelligent safety monitoring device consisting of a controller, explosion-proof power (lighting) control box, level gauge, combustible gas detector, electrostatic grounding alarm, level switch, etc. It provides monitoring functions such as display of height, liters, temperature, leak monitoring, ullage, calculation functions, and oil in/out calculation. The controller receives sensor signals, displays the current oil tank status information, and uploads data to the upper computer. The oil tank level monitoring technical target: the controller collects and displays the oil tank level value in real time during operation, converts the level value into a capacity value through calculation, and the level display is combined with graphical display and linked with the distribution box to automatically stop the pump.
Q&A
Q: Why does the Portable Fuel Station use a dedicated controller control system?
A: The dedicated controller control system (also referred to as the lower computer) is the basic unit required for receiving and dispensing oil in a mobile skid-mounted fueling station. It consists of a dedicated controller, an explosion-proof power (lighting) distribution box, and peripheral detection electrical equipment. The dedicated controller is centered on the MSP430F169 high-end intelligent microprocessor, equipped with reliable input/output circuits. The explosion-proof operation drive box consists of various relays, contactors, protection circuits, operation buttons, etc. Together, they realize functions such as oil unloading, level detection, detection of various alarm signals, and interlocking control of the skid-mounted fueling device.
